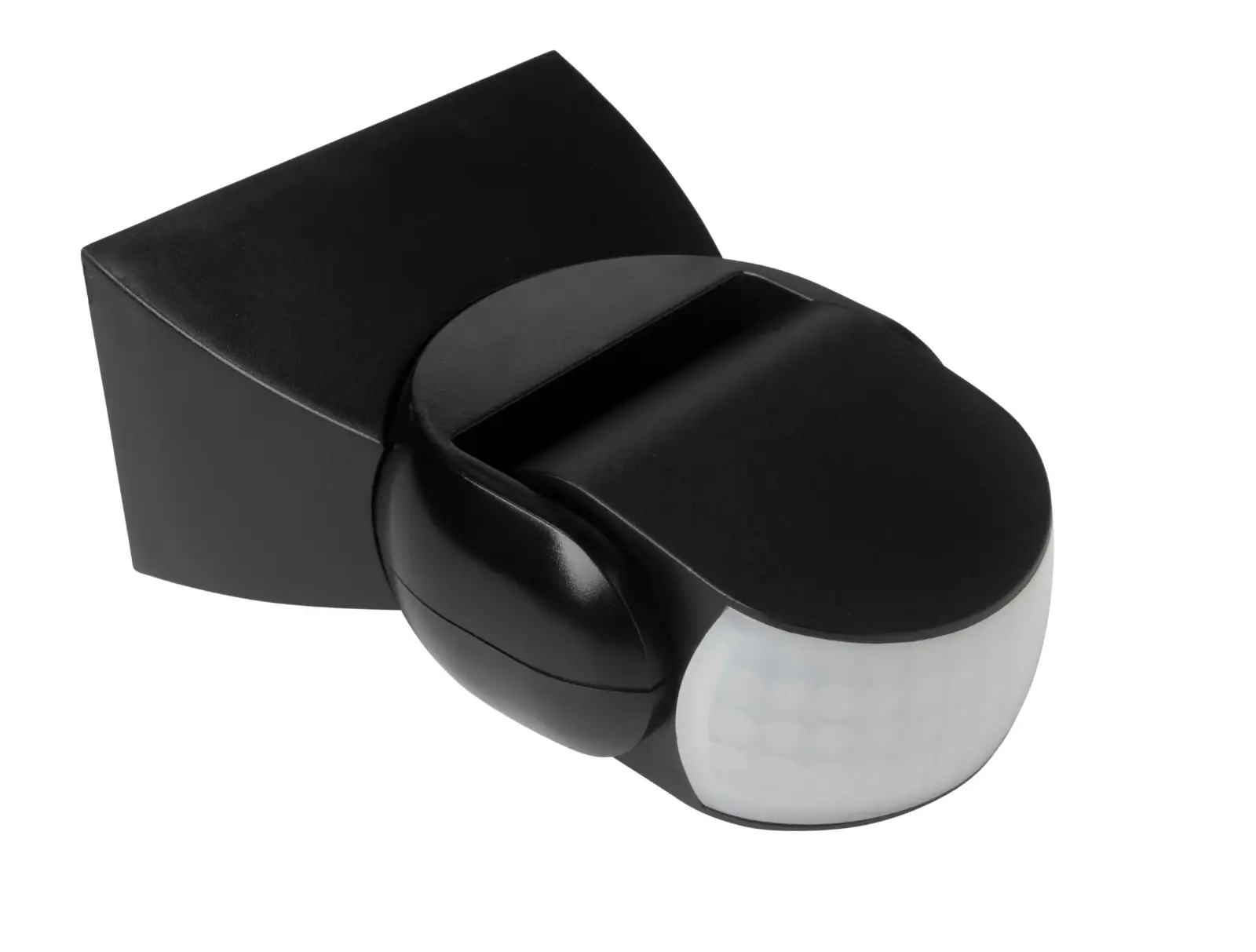

- PROTON Multi-Directional 180 Degree PIR, IP54, Black
RPR180PIR-04
PROTON Multi-Directional 180 Degree PIR
IP54 Black
Features and benefits
Tech specs
Downloads
Accessories
How to videos
Case studies
- Passive infra red ensures light is switched on when sensor detects movement of heat, switched off when area is vacated. Minimises false / unwanted triggering
- Suitable for outdoor applications.
- Manual over ride with automatic reset after 8 hours
- Large terminals accept 2 x 1.5mm2 conductors in each terminal. Facility for loop in loop out.
- Earth terminal included
- 3 wire - multiple sensors can be wired in parallel
- High load contact rating, allows numerous fittings to be switched
- No minimum load requirements
- Maximum loading: - 1200W Incandescent - 300W Fluorescent - 300W LED
- Adjustable time delay of 10sec to 15min
- Adjsutable lux settings 3lx to 2000lx
- Max detection area of 12m diameter at 2.5m
- Complete with accessory shield to reduce detection angle
- Corner mounting bracket available as accessory - code: RPRBRK-04
- Not for sale in Germany, France, Belgium, Netherlands, Switzerland, Luxembourg and Italy
