- SONIC4 150W LED HIGHBAY, IP65, 130Lm/W, with MW and 3 Step Dimming, 4000K

RSN15040MW-04

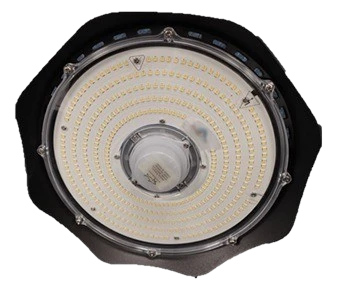

SONIC4 150W LED HIGHBAY
IP65 130Lm/W with MW and 3 Step Dimming 4000K





Features and benefits
Tech specs
Downloads
Accessories
How to videos
Case studies
- Suitable for use in warehouses, manufacturing plants, garages, workshops & aircraft hangars, retail superstores, gymnasiums & sports halls
- LED replacement for 300W metal halide highbay fittings
- Die cast aluminium housing with Polycarbonate lens providing a high impact rating of IK09
- Prewired with 1m flex and SWIFT connector
- Fitting has 110° beam angle, 60° and 90° lens accessory available
- Surface mounting bracket and wire guard available
- Very high efficacy of 138lm/W
- Wide operating temperature range of -25°C to 45°C
- Maximum mounting height of 12m
- Maximum detection range of 9m
- Adjustable detection range: 20%/ 50%/ 75%/ 100%
- Hold time: 10sec/1min/5min/10min/15min/20min/30min/60min
- Lux switching levels: disable/ 10lx/ 30lx/ 50lx
- Standby level: 10%/ 30%/ 50%
- Standby time: disable/ 1min/ 30min/ 60min
