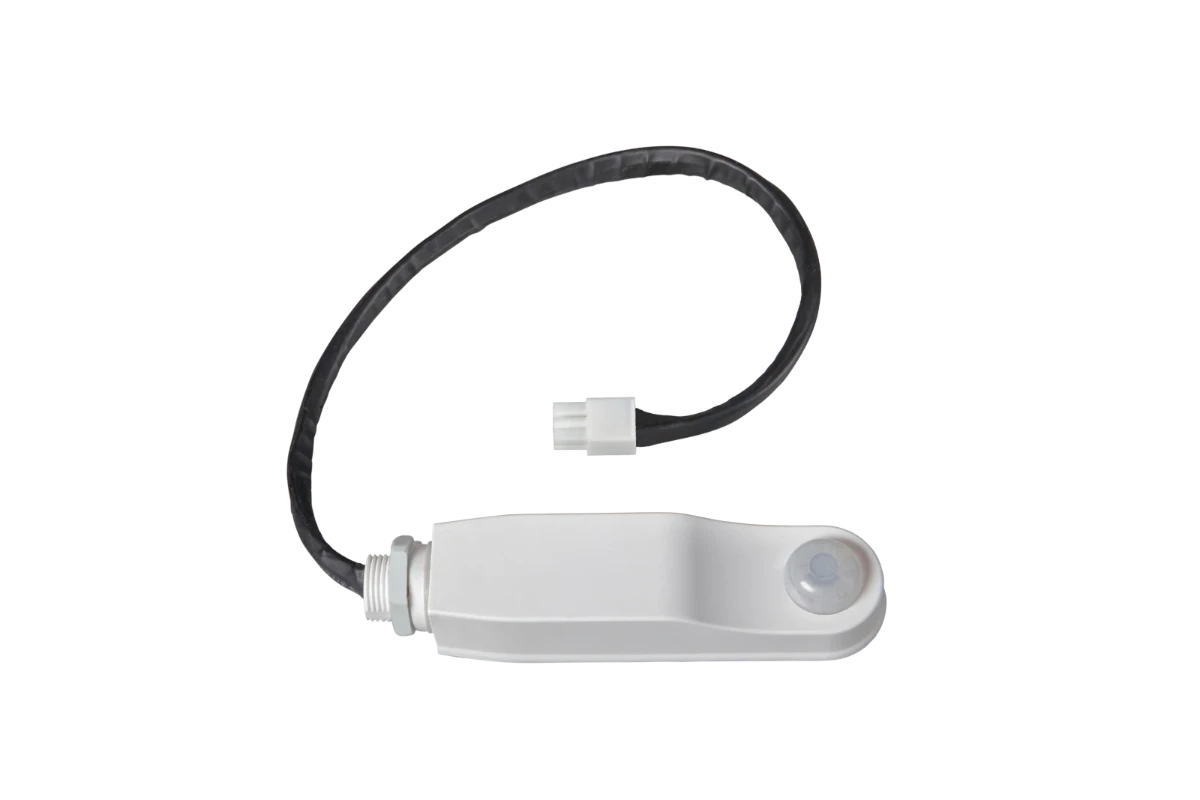

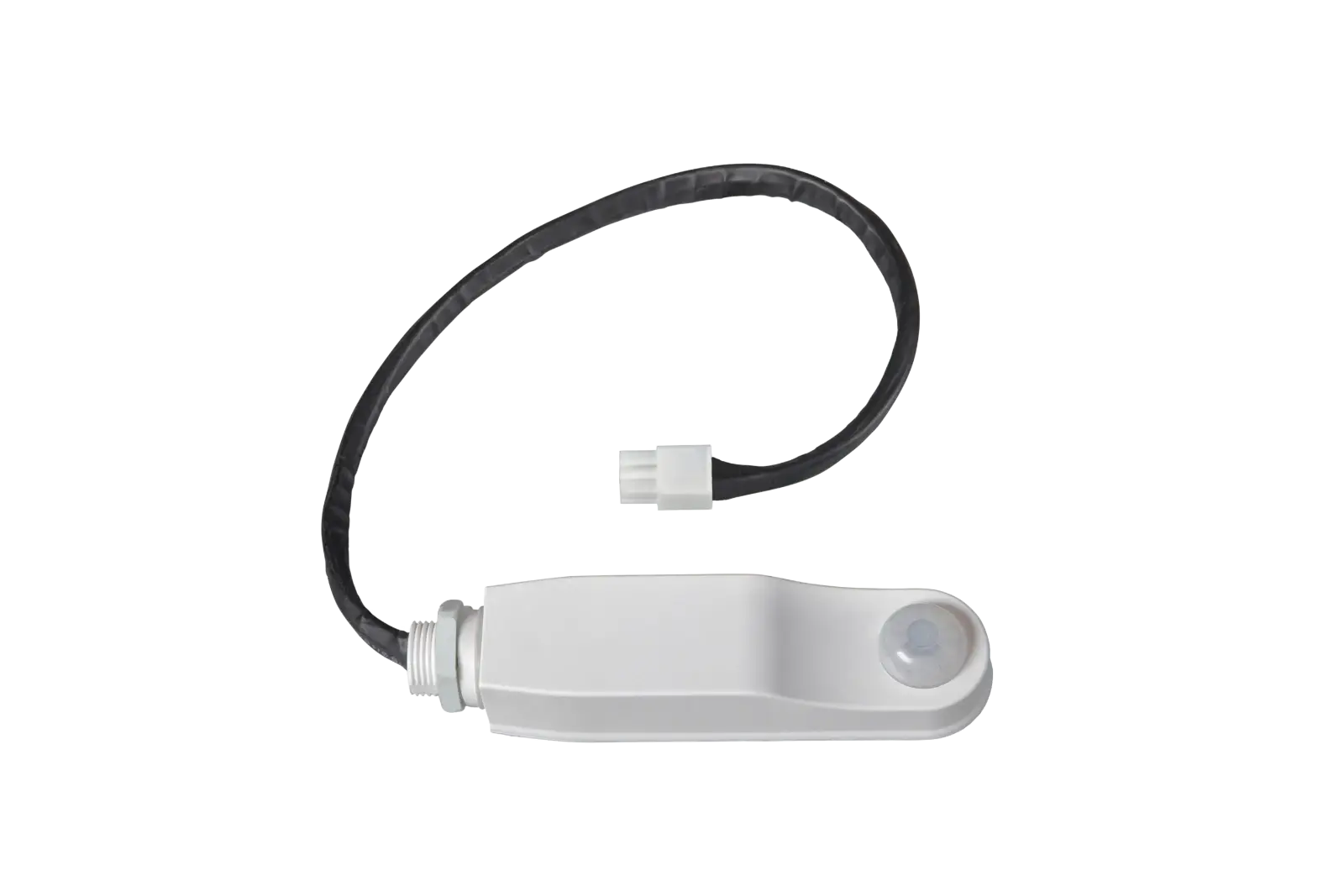

- 360 Degree PIR For CAESAR, SULTAN And VULCAN
R360PIR-01
360 Degree PIR For CAESAR
SULTAN And VULCAN
Features and benefits
Tech specs
Downloads
Accessories
Brochures
How to videos
Case studies
- Suitable for use with CAESAR LED battens and SULTAN and VULCAN LED corrosion proof fittings
- Polycarbonate housing
- High impact rating of IK10
- 7m detection diameter at mounting height of 2.8m
- Adjustable detection range - 25%, 50%, 75%, 100% of maximum
- Adjustable step dimming levels of 0%, 10%, 20%, 30%
- Adjustable lux settings of 10-50lx and daylight setting
- Adjustable time delay of 10sec to 60min
- Maximum loading of 2A, 450W
- Wide ambient temperature range of -10°C to +40°C
