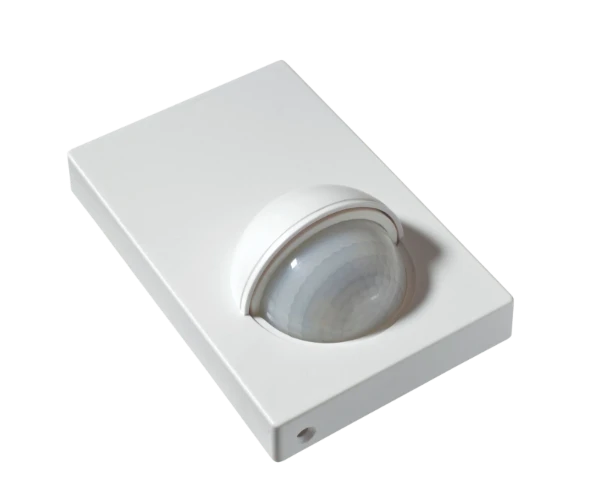

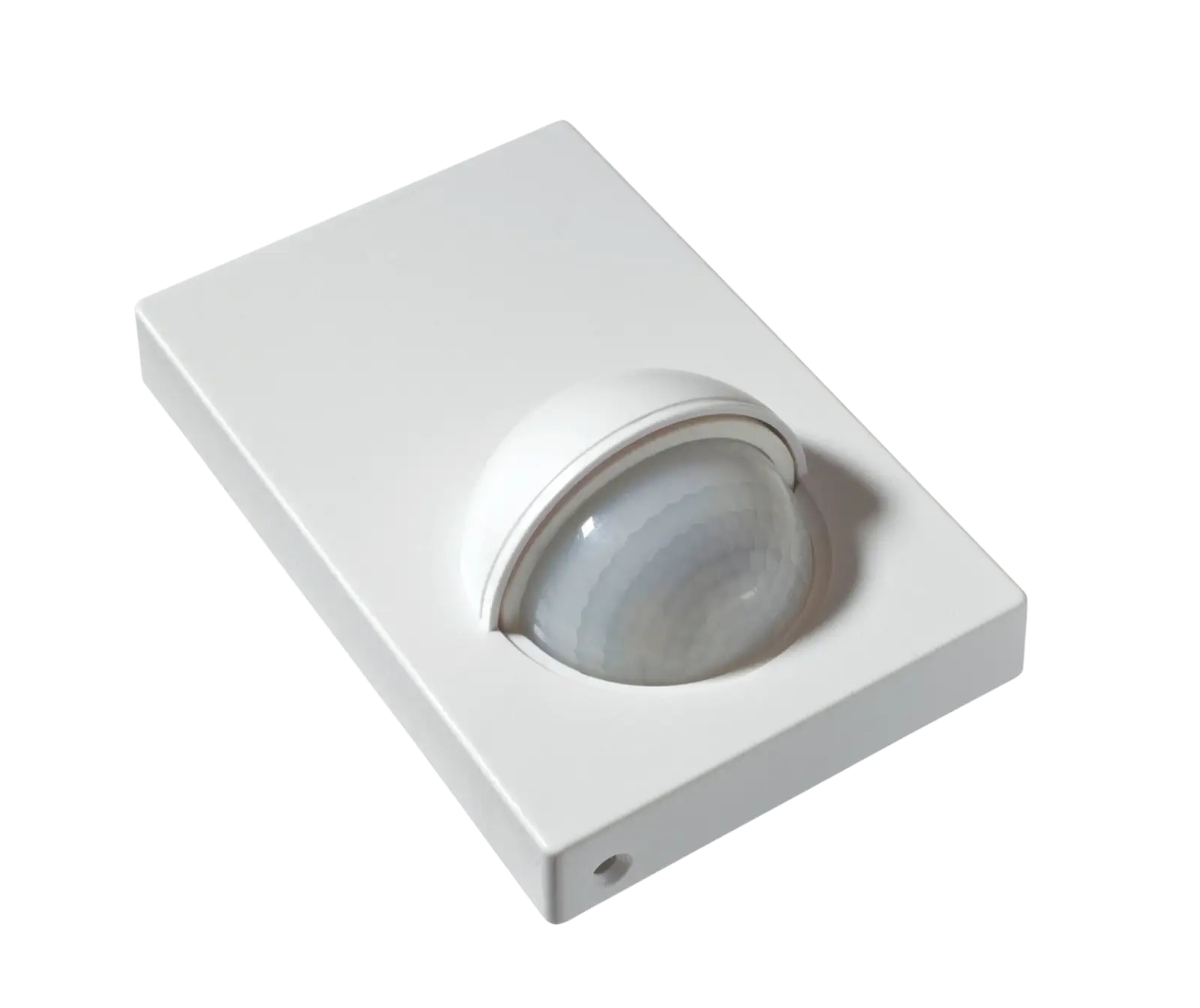

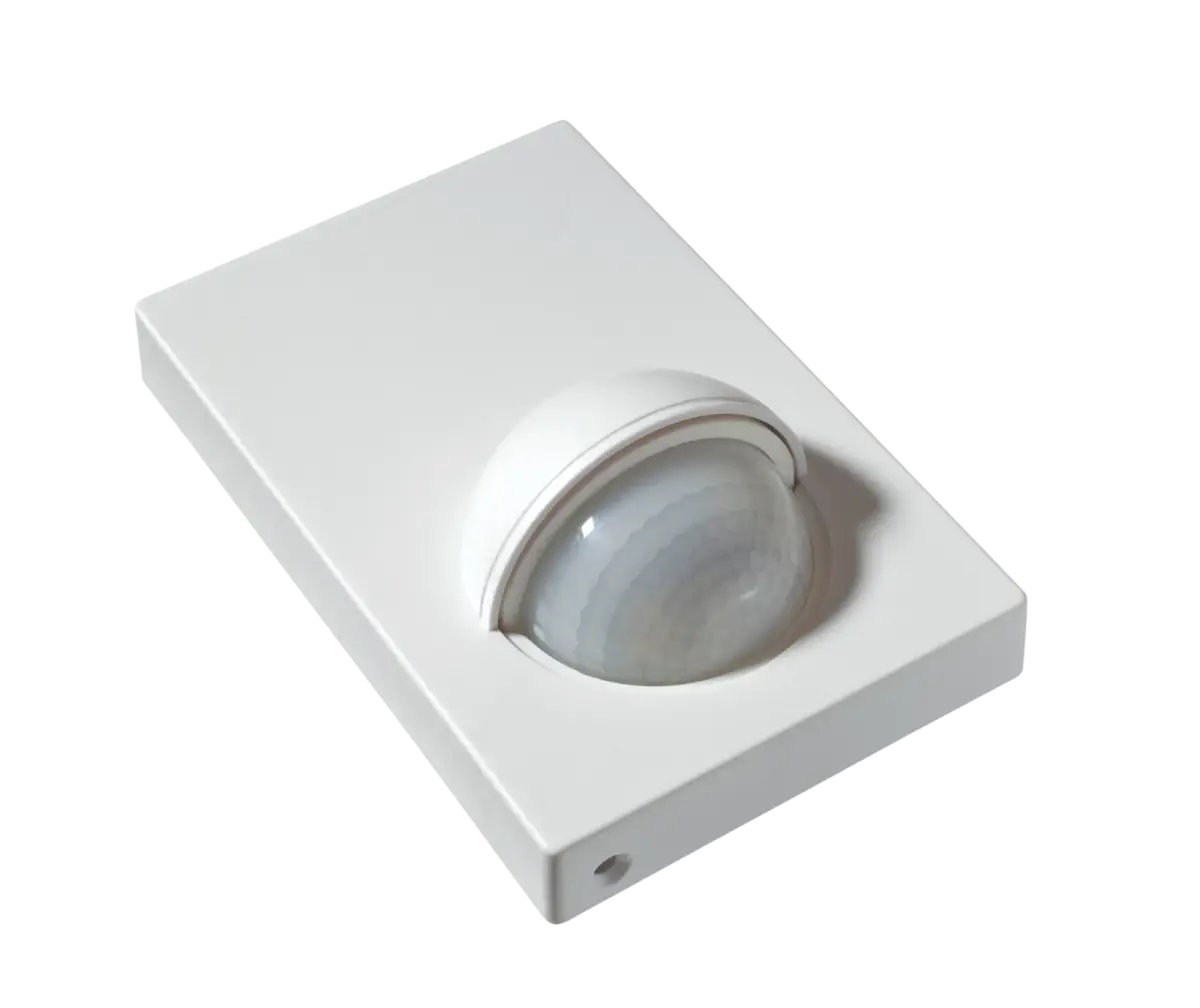

PROTON 180 Degree PIR, IP44, Wall Mounted, Manual Override

Passive infra red ensures light is switched on when sensor detects movement of heat, switched off when area is vacated. Minimises false / unwanted triggering

Suitable for outdoor sheltered applications

Manual over ride with automatic reset after 8 hours

Large terminals accept 2 x 1.5mm2 conductors in each terminal. Facility for loop in loop out

Earth terminal included

3 wire - multiple sensors can be wired in parallel

High load contact rating, allows numerous fittings to be switched

No minimum load requirements

Maximum loading: - 1200W Incandescent - 300W Fluorescent - 300W LED

Adjustable time delay of 10sec to 15min
