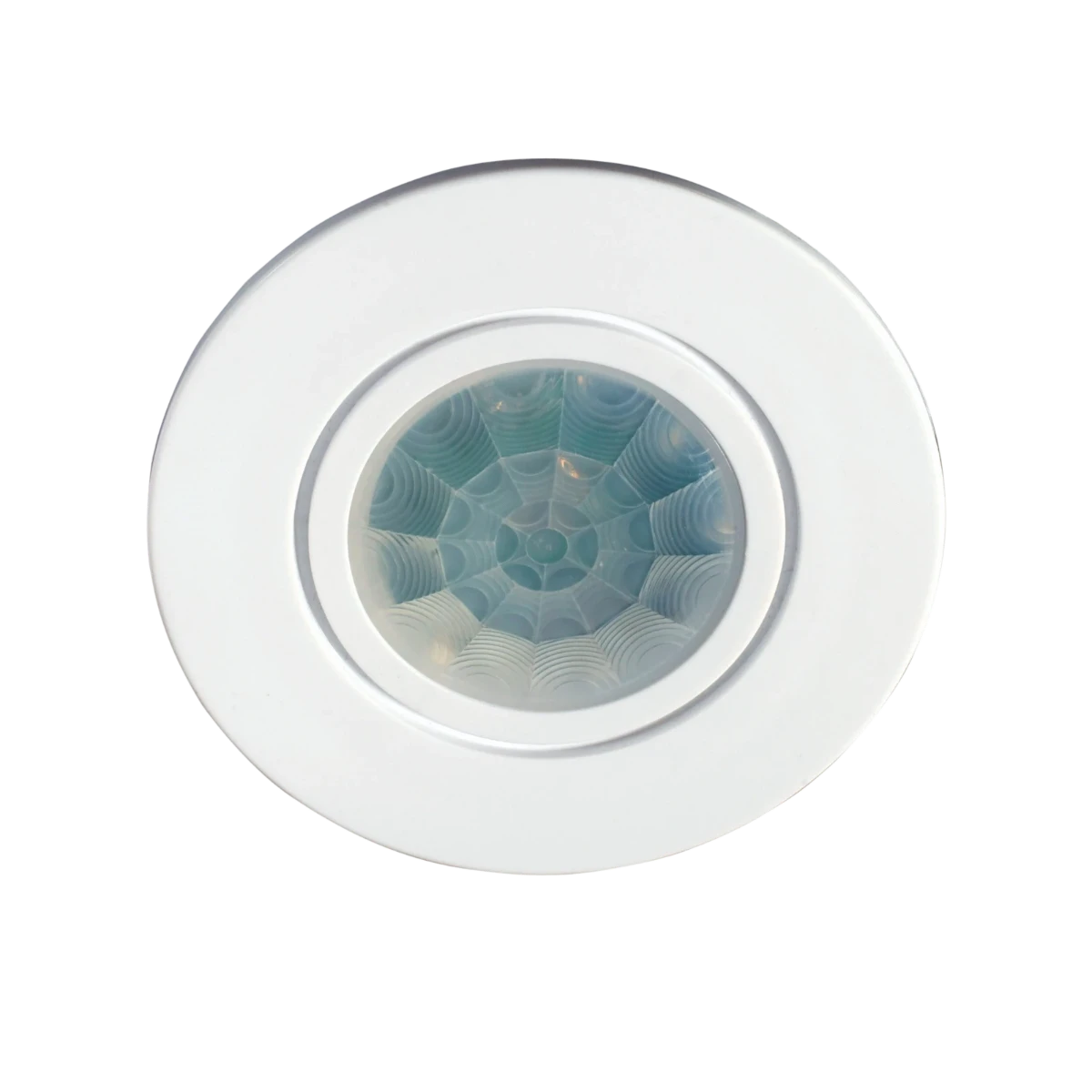

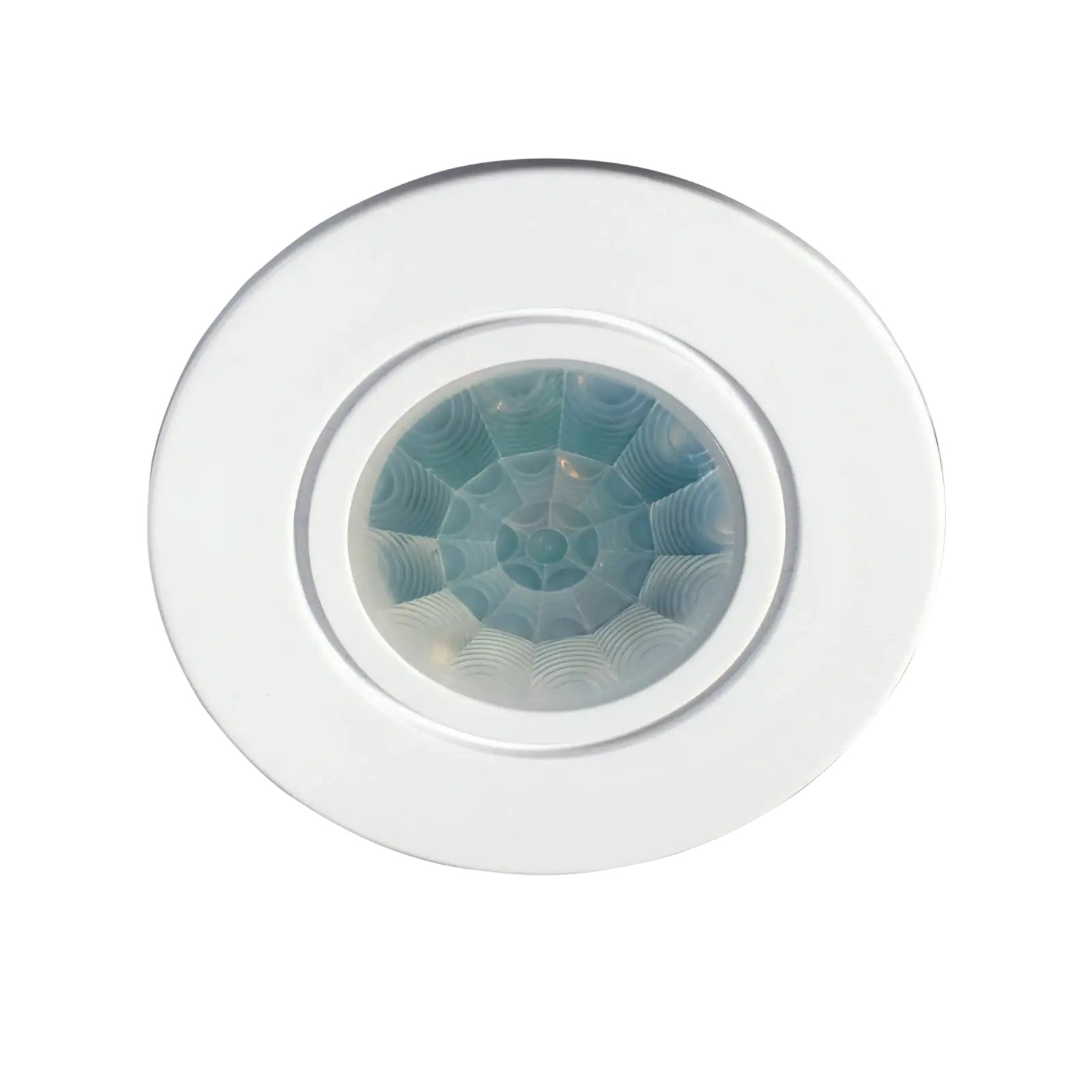

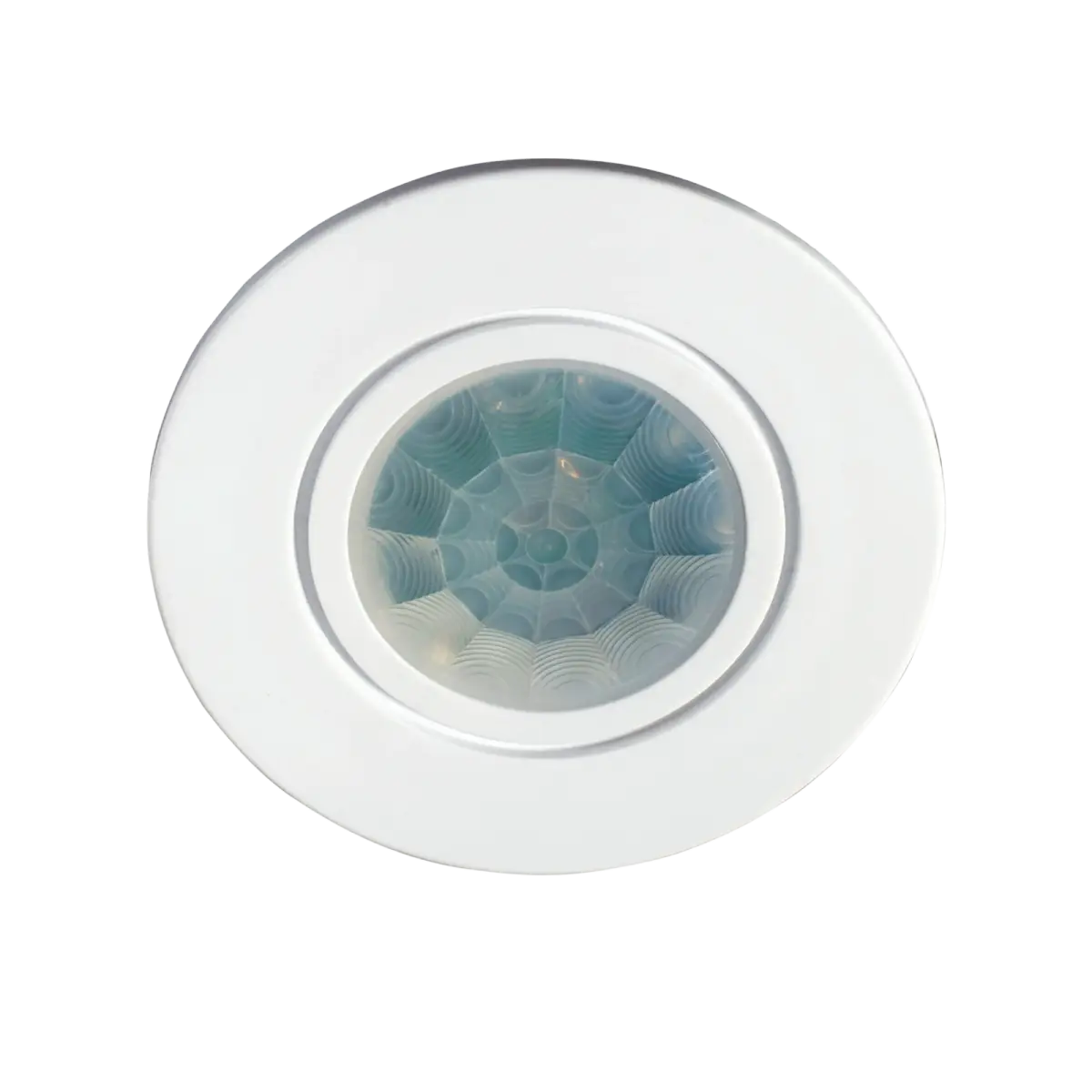

- PROTON 360 Degree PIR With Flush Front Complete With Accessory Shield To Narrow Beam Angle
RPR360PIRF-01
PROTON 360 Degree PIR With Flush Front Complete With Accessory Shield To Narrow Beam Angle
Features and benefits
Tech specs
Downloads
Accessories
Brochures
How to videos
Case studies
- Passive infra red ensures light is switched on when sensor detects movement of heat, switched off when area is vacated. Minimises false / unwanted triggering
- Complete with accessory shield to narrow beam angle
- Manual over ride with automatic reset after 8 hours
- Large terminals accept 2 x 1.5mm2 conductors in each terminal. Facility for loop in loop out
- Earth terminal included
- 3 wire - multiple sensors can be wired in parallel
- Unobtrusive flush face design
- High load contact rating, allows numerous fittings to be switched
- No minimum load requirements
- Maximum loading: - 1200W Incandescent - 300W Fluorescent - 300W LED
