- PORTAL 18W LED Slimline Bulkhead CCT3 Selectable IP54 Emergency Sensor White 3000K 4000K 6500K
RPO18CCT3ES-01

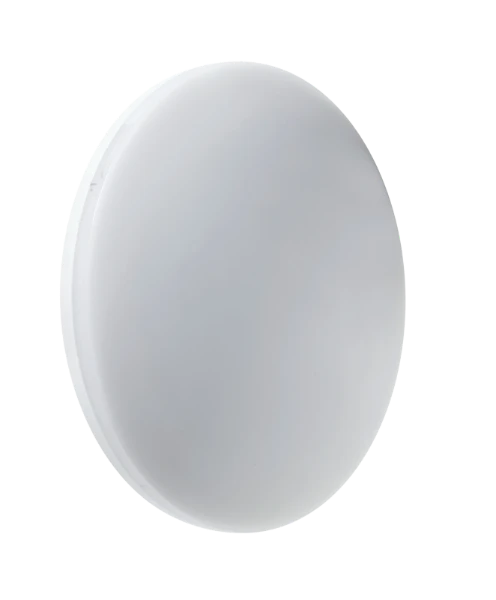

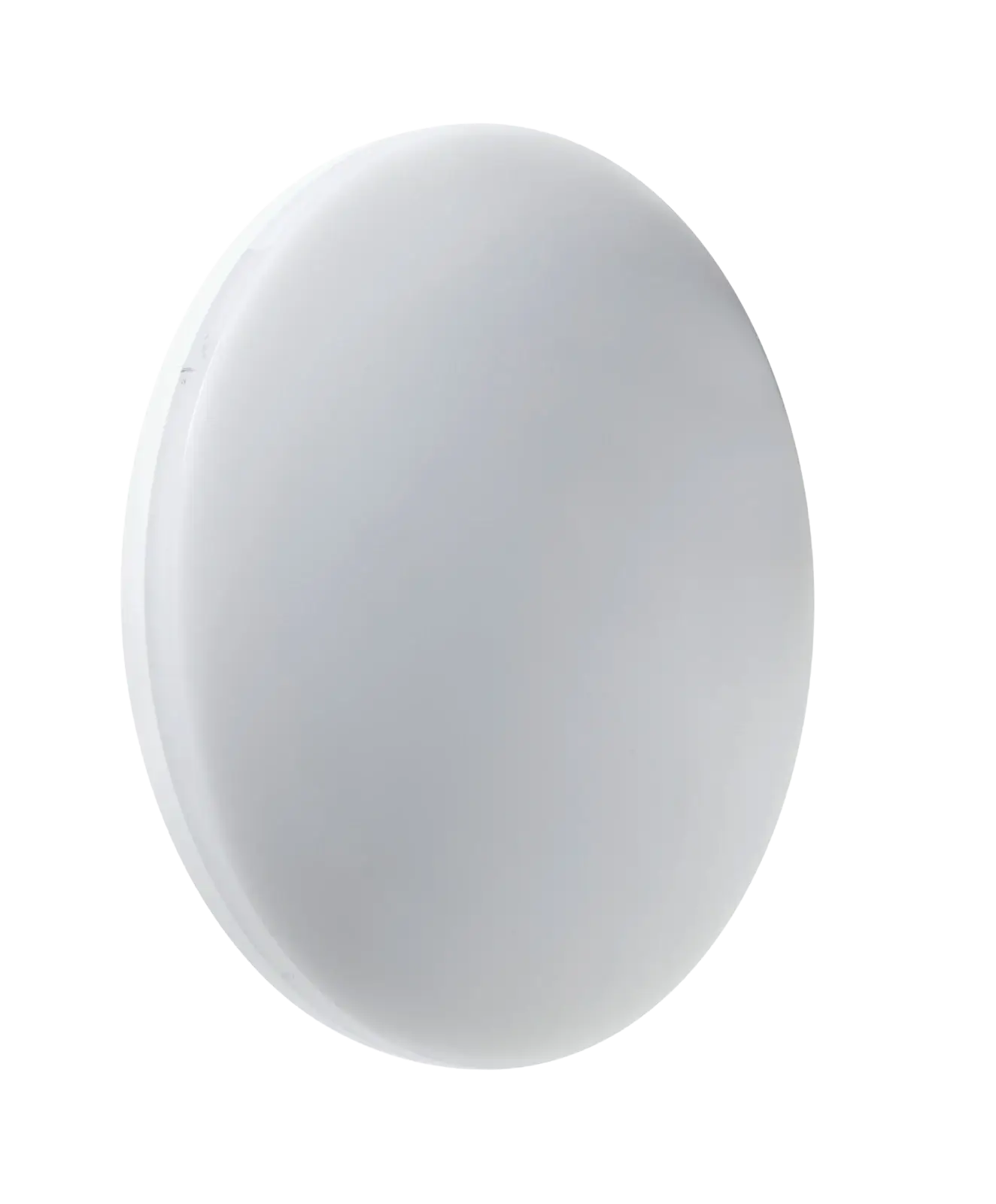

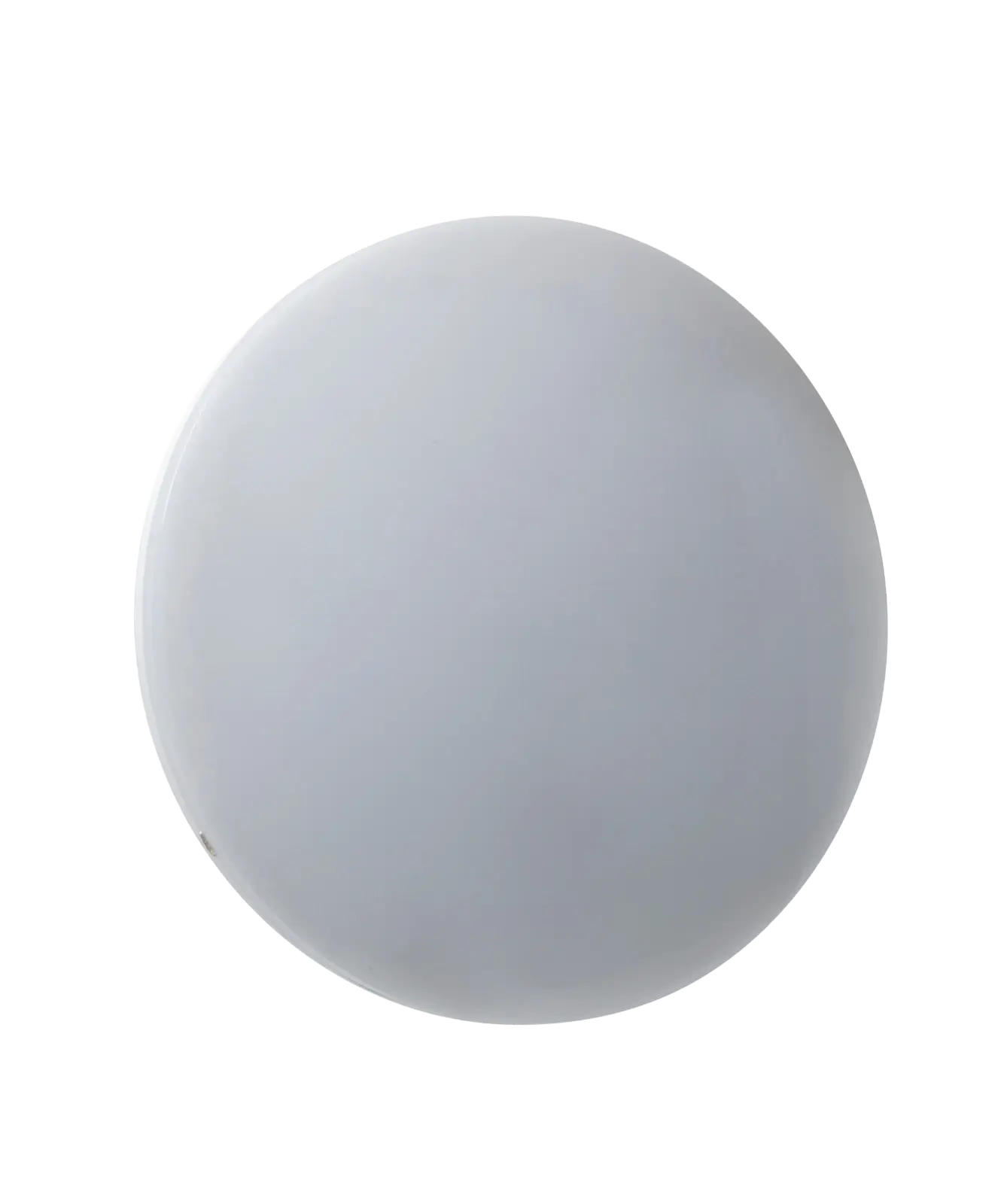

PORTAL 18W LED Slimline Bulkhead CCT3 Selectable IP54 Emergency Sensor White 3000K 4000K 6500K
Features and benefits
Tech specs
Downloads
Accessories
How to videos
Case studies
- Suitable for use in retail shops, public buildings, communal areas, sports centres, stairwells, corridors, walkways
- LED replacement for 2x18W PL fittings
- Switch on the LED plate enabling selection between 3000K, 4000K and 6500K
- High impact resistant polycarbonate housing with impact rating IK07
- High efficacy of 88-100lm/W
- Wide operating ambient temperature range of 0°C to +40°C
- Provides 3 hour emergency discharge duration
- 230lm output in emergency mode
- Microwave sensor with 3-step dimming function
- Max detection range of Ø14m and max mounting height of 6m
- Adjustable detection area: 50%/ 100%
- Adjustable hold time: 5s/ 90s/ 5min/ 10min
- Adjustable lux settings: 2lux/10lux/50lux/disabled
- Adjustable stand-by period: 0s/ 10s/ 10min/ disabled
- Adjustable stand-by timing level: 20%/ 40%
- Suitable for wall and ceiling mounting
